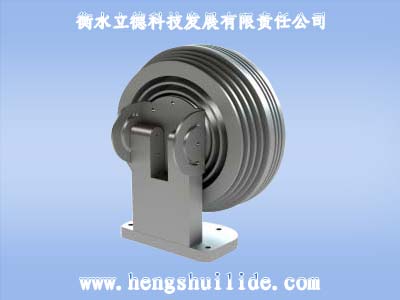

LED防爆泛光燈
LED explosion-proof floodlights
適用范圍：
LED防爆投光燈主要適用于爆炸氣體環境中1區或2區，為ⅡA，ⅡB，ⅡC類T6組及以下級別，組別的爆炸性危險場所，在交流電壓220V的電路中，作為照明之用
Scope of application
LED light projection lamp is mainly used in explosive gas environment in zone 1 or zone 2, for A B, II, II class C T6 group level and below， group explosive dangerous places， in AC voltage 220V circuits, as for lighting
基本技術參數 ：
|
型號規格
Model specification
|
額定電壓
Rated voltage（V）
|
功率
Power（W）
|
防爆標志
Explosion proof marks
|
防腐等級
Anticorrosion grade
|
防護等級
Protection grade
|
進線電纜外徑
The cable outer diameter
|
出線口螺紋
Outlet thread
|
|
LD-F060/G
|
AC85-265V
|
60W
|
ExdII CT6
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|
|
LD-F120/G
|
AC85-265V
|
120W
|
ExdII CT6
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|
|
LD-F180/G
|
AC85-265V
|
180W
|
ExdII CT6
|
WF2
|
IP65
|
Φ8-Φ15
|
G3/4
|
產品特色 1.外殼采用1050產品特色
1.外殼采用1050純鋁，車床加工，表面氧化噴砂，強度高、并具有較強的防腐能力。
2.整體采用密封結構，具有較強的防水防塵能力。
3.表面經過特殊的銀油工藝處理、能在粉塵較多的場所使用。
1.Shell is made of 1050 pure aluminum, lathe processing, surface oxidation sandblasting, high strength, and has strong anti-corrosion ability.
2.Whole sealed structure, has good waterproof and dustproof performance.
3.After a special surface treatment process, the oil of silver in the dust more places

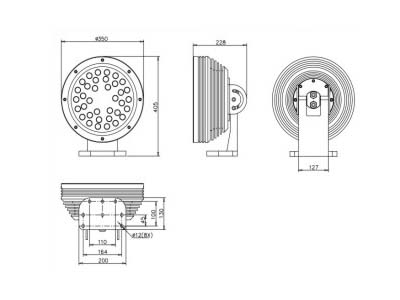

安裝尺寸 Mounting dimensions

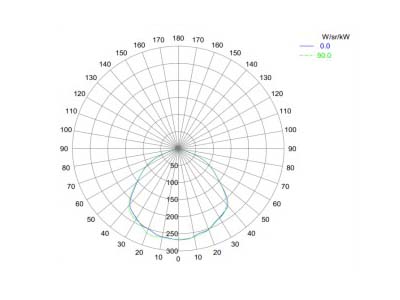

配光曲線： Light distribution curve:
