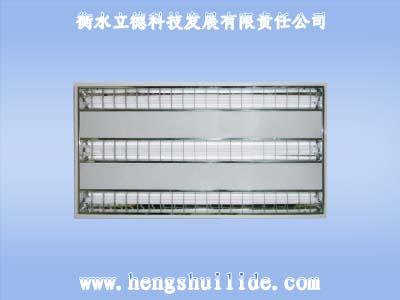

LED格柵燈
LED grille lamp
適用范圍：
適用于辦公室、商場、超市、會議室、營業廳等需要大面積照明的室內場所使用。
Scope of application:
apply to shopping malls, supermarkets, office, meeting room, business hall need large area lighting indoor places.
基本技術參數 ：Specification
|
型號規格
Model specification
|
額定電壓
Rated voltage（V）
|
功率
Power（W）
|
防腐等級
Anticorrosion grade
|
尺寸
Size
|
|
LD-GS218
|
AC85-265V
|
2*18W
|
WF1
|
600×1200×80mm
|
|
LD-GS318
|
AC85-265V
|
3*18W
|
WF1
|
600×1200×80mm
|
產品特色：
1.采用進口有機板材料，透光性好，光線均勻柔和，防火性能好，符合環保要求。
2.底盤采用優質冷軋板，表面采用磷化噴塑工藝處理，防腐性能好，不易磨損、褪色。
3.所有塑料配件均采用阻燃材料。
4.配用標準LED日光燈管，規格及功率有多種選擇。
Product characteristics：
1.Imported organic board materials, good light permeability, soft and uniform light, good fireproof performance, accord with environmental protection requirement.
2.The chassis is made of high quality cold-rolled plate, surface using spray phosphating process, good corrosion resistance, not easy to wear, fade
3.All plastic parts are used in flame retardant materials.
4.With standard LED fluorescent tube, specifications and power have a variety of options

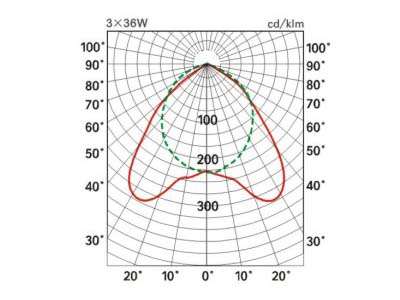

配光曲線：Light distribution curve:
